Buying Guide for Transformer Oil Filtration Machine Part II

Buying Guide for Transformer Oil Filtration Machine Part II


Click here to return to read Part I


E. Transformer Voltage Grade


For transformers of different voltage grades, their requirements and standards for transformer oil are also different. For example, the higher the voltage grades of transformers, the higher the requirements for the breakdown voltage of transformer oil.

Inspection indicators after oil purification:

Inspection Indicators

Voltage grades of transformers

500

220~330

66~110

Breakdown Voltage (KV)

60

55

45

Moisture Content (ug/g)

10

15

15

Gas Content (% V/V)

1

1

--

Dielectric Loss Factor (90%)

0.2

0.5

0.5

Recommended Number of Vacuum Stage based on Transformer Voltage Grades:

Transformer Voltage Grade

Number of Vacuum Stage for Vacuum Transformer Oil Purifiers

Vacuum Pumps

Below 66 KV

Single-Stage Vacuum

Transformer Oil Purifier

Rotary Vane Vacuum Pump

Above 110 KV

Double-Stage High Vacuum

Transformer Oil Purifier

Rotary Vane Vacuum Pump

+

Roots Booster Vacuum Pump

Note:

1) According to customer needs, vacuum pumps or roots pumps can also be added to meet specific needs and improve the efficiency of vacuum degassing and dehydration.

2) Double-Stage High vacuum type is equipped with an vacuuming interface for transformer evacuation operation. That is to realize the purpose of one machine with two functions.


F. Project Budget


Different customers and projects have different budget requirements for the Transformer Oil Filtration Machine, so we PURETECH provide a variety of configurations to meet the different budget needs of customers. The functions, effects and structures of the three configurations are the same, and the difference lies in the brand of the components used.

No.

Configurations

Price

Description

1

Economical type

Low

All components of the economical type are equipped with well-known Chinese brands;

2

Superior type

(Most recommended)

Moderate

Main components (vacuum pump, oil pump and motor, fine filter element, etc.) of the superior model adopt European first-line brands;

3

Luxury type

High

Equipped with the Roots booster pump from European first-line brand on the basis of the superior configuration;

From the aspect of cost-performance, the superior type is the most cost-effective type, which is also the type that PURETECH clients choose the most. In addition to the above three configurations, PURETECH can also provide customized services. For example, if the customer specifies the brand of vacuum pump or other components, we can also update the budget for you and prepare a quotation. For details, please contact the PURETECH sales team.

G. Working Environment


According to the needs of different working environments, customers can choose Skid-mounted type or Trailer-Mounted type, fixed or mobile, with or without rain cover, etc. For example, when for outdoor Transformer Oil Filtering work, it is recommended to use a mobile oil filtration machine with a weather-proof enclosure, or a fixed oil purifier to be installed in a truck provided by the customer.

Types


Description

Standard type

double stage high vacuum transformer oil purifier

Standard type:

þ Full frame.

þ Skid-mounted type with heavy-duty casters.

þ Lifting eyes.

þ Suitable for indoor use, or installed in a truck.

þ Machine color can be customized.

Metallic Enclosed type for outdoor service

vacuum <a href=https://www.cqpuretech.com/High-Vacuum-Transformer-Oil-Filtration-Machine-p.html target='_blank'>Transformer Oil Filtration Machine</a> with metallic housing

OPTIONAL type A:

þ Full frame.

þ Skid-mounted type with heavy-duty casters.

þ Lifting eyes.

þ Metallic weather-proof enclosure, the doors can be hydraulically supported.

þ Suitable for outdoor use.

þ Machine color can be customized.

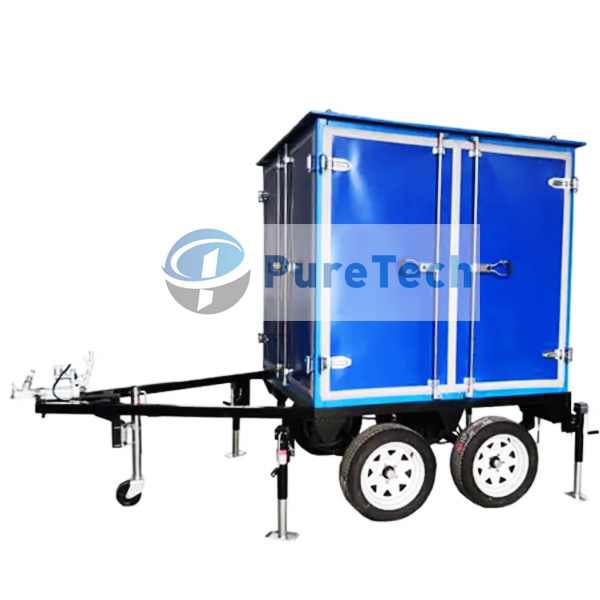

Trailer-mounted type with metallic weather-proof enclosure for outdoor service

single stage vacuum transformer oil purifier with mobile trailer

Single-axle mobile trailer

trailer-mounted transformer oil filtration machine with steel housing

Double-axle mobile trailer

OPTIONAL type B:

þ Full frame.

þ Trailer-mounted type with pneumatic tires, support rods and brakes

þ Lifting eyes.

þ Metallic weather-proof enclosure, the doors can be hydraulically supported.

þ Suitable for outdoor use.

þ Machine color can be customized.

þ Single-axle trailer and double-axle trailer for different oil treatment capacities.

Explosion-proof type

explosion-proof type transformer oil purifier

OPTIONAL type C:

þ Full frame.

þ Skid-mounted type with heavy-duty casters.

þ Lifting eyes.

þ Suitable for corrosive working environment with flammable or explosive gases, fire explosion, etc.

þ Machine color can be customized.

H. Customized Design


Different countries and regions usually have different requirements for the function or use of transformer oil purifiers. In order to meet the different needs of customers, we PureTech and our experienced technical team provide you with the most common customized options for reference, if you have other specific needs, you can also communicate with our sales staff to confirm.

Standard

Optional

Description

Vacuum Chamber

T shape degassing chamber of transformer oil purifier

Standard- “T”-shape vacuum chamber

vertical degassing chamber of transformer oil purifier

Optional-Vertical vacuum chamber

þ “T”-shape vacuum chamber creates a larger evaporation film than vertical type, thereby achieving a better efficiency in removing moisture and gas from transformer oil.

þ We also accept customized requirements of vertical vacuum chamber.

Vacuum Chamber

vacuun <a href=https://www.cqpuretech.com/6000-LPH-High-Transformer-Oil-Filtration-Machine-p.html target='_blank'>Transformer Oil Filter</a>ing machine

Standard- “T”-shape vacuum chamber

double stage vacuum transformer oil purifier

Optional-Double-layer vacuum chamber

þ Double-layer vacuum chamber further enlarges the oil evaporation area than single-layer (“T”- shape), thereby achieves a higher efficiency in Transformer Oil Dehydration and degassing.

þ Standard type with “T”-shape vacuum chamber is enough to meet almost all oil filtering needs, but if the customer pursues higher efficiency, this two-stage vacuum chamber can be used.

Manual/

Automatic Control

manual control transformer oil filtration machine

Standard- Manually control type

automatic control transformer oil filtration machine

Optional- Automatic control with PLC and touch screen

þ With PLC control and Touch Screen, the operation can be easier for users. Meanwhile, the operating parameters can be displayed on touch screen.

Interchangeable valves

oil inlet and outlet valve of transformer oil purifier

Standard-One inlet valve and one outlet valve

interchangeable valves of transformer oil purifier

Optional- Interchangeable valves

þ With interchangeable valves, the oil flow direction can be adjusted without removing the pipeline

Oil Inlet Pump

oil outlet pump of transformer oil purifier

Standard- Only oil outlet pump, Without oil inlet pump. Oil is drawn into the oil purifier by vacuum.

oil inlet and outlet pump of transformer oil purifier

Optional- Oil Inlet Valve with driven motor.

þ With oil inlet pump, user can perform oil transfer bypassing vacuum dehydration.

þ User can perform hot oil circulation with oil inlet pump without vacuum degassing.

þ Note: The oil inlet pump is not necessary for the standard vacuum oil filtration, and it is customized according to customer needs.

I. Online Testing Instruments


Customers can choose online or offline tester according to their own needs. The online tester can be installed on PURETECH's transformer oil filter unit for online and real-time measurement.

Testing Instruments

Standard OR Optional

Pictures

Description

Online Digital Flow Meter

Standard

oil flow meter of transformer oil purifier

þ Display instantaneous flow and total flow, which can be reset to zero. The PURETECH oil filter unit contains a flow meter.

Online Moisture Content Tester

Optional

online moisture content of transformer oil

þ Display real-time water content (ppm) of transformer oil. It can be used as one of the standards for monitoring oil quality.

Online Digital Pirani Vacuum Gauge

Optional

digital pirani vacuum gauge of transformer oil purifier

þ The reading is more accurate, and it is recommended to equip with PURETECH Double-stage high vacuum transformer oil purifier.

Transformer Oil BDV Tester

80KV/100KV (offline)

Optional

transformer oil bdv tester

þ It is used to measure whether the breakdown voltage of the transformer oil meets the requirements after filtration.



Please click here to continue reading Part III of Buying Guide for Transformer Oil Filtration Machines.
