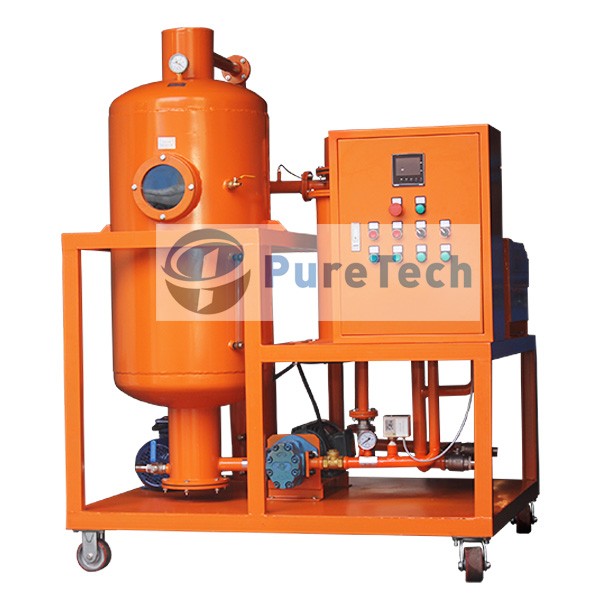

Gear Oil Purifier (Model GOP) is a vacuum oil filtration machine that widely used in cement, steel, machinery, hydraulic and other industries, and particularly suitable for the heavily contaminated lube oils which contains much particulate matters, such as gearbox oil which is contaminated by dust, impurities and particles during operation.
In this case, more impurities will cause frequent clogging of the filter elements, and therefore increase maintenance costs. In order to effectively reduce the operation cost of customers, and meanwhile remove the impurities, we PureTech designed this GOP system by adding the Plate and Frame Filter Device on the basis of Vacuum Lubrication Oil Purifier (Model LOP) system, which has a higher dirt holding capacity and lower replacement cost.
• Effectively remove free and dissolved water from gear oil and other lube oils.
• Multi-stage filtration ensures the high oil filtering accuracy.
• Skid-mounted type with compact structure, high degree of automation, easy to operate and maintain.
• Especially suitable and cost-saving for heavily contaimated lube oils.
• Multi protection, alarm and emergency-stop devices are installed to ensure safe operation.
Specification of Gear Oil Purifier
|
Machine Parameter |
Item | Unit | GOP-10 | GOP-20 | GOP-30 | GOP-50 | GOP-100 | GOP-150 | GOP-200 | |
| Flow rate | liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | ||
| Vacuum degree | Mpa | (-0.070) ~ (-0.099) | ||||||||
| Working pressure | Mpa | ≤ 0.5 | ||||||||
| Temperature range | ℃ | 40 ~ 80 | ||||||||
| Power supply | 380Volts, 50Hz, 3Phase (Or customized) | |||||||||
| Heating power | kw | 9 | 15 | 24 | 30 | 60 | 90 | 96 | ||
| Total power | kw | 10.5 | 17 | 26 | 33 | 66 | 98 | 106 | ||
| Inlet/outlet diameter | mm | 19 | 25 | 32 | 32 | 48 | 50 | 58 | ||
| Size | Length | mm | 1100 | 1230 | 1250 | 1500 | 1650 | 1750 | 1900 | |
| Width | mm | 800 | 810 | 850 | 950 | 1000 | 1200 | 1250 | ||
| Height | mm | 1250 | 1260 | 1300 | 1400 | 1600 | 1750 | 1950 | ||
| Weight | kg | 300 | 350 | 400 | 500 | 650 | 850 | 1000 | ||
| Oil index after purification | Cleanliness | NAS | ≤ 6 | |||||||
| Water content | ppm | ≤100 | ||||||||
| Filtering accuracy | micron | 1 | ||||||||
| Demulsification number | min | ≤ 15 | ||||||||
* OPTIONAL CONFIGURATIONS: PLC automatic control system, Fully-Touch Screen, Explosion-proof type, Mobile Trailer, Weather-proof Enclosure, Online Oil Testing Instruments, etc.
* Please inquire us for other flow rates or types.
* The machine size and weight will change slightly due to different configurations.The machine size and weight will change slightly due to different configurations.
• 12 months of quality guarantee for non-human damage.
• Lifelong maintenance and spare parts supply.
• Free training on operation, maintenance and troubleshooting at PureTech factory.
• Puretech engineers go to customer site for commissioning and training (payable service).
• Design accept user's customization.
