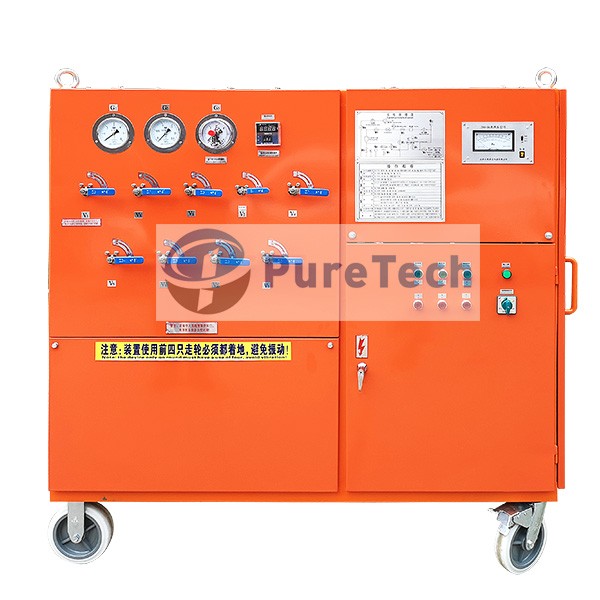

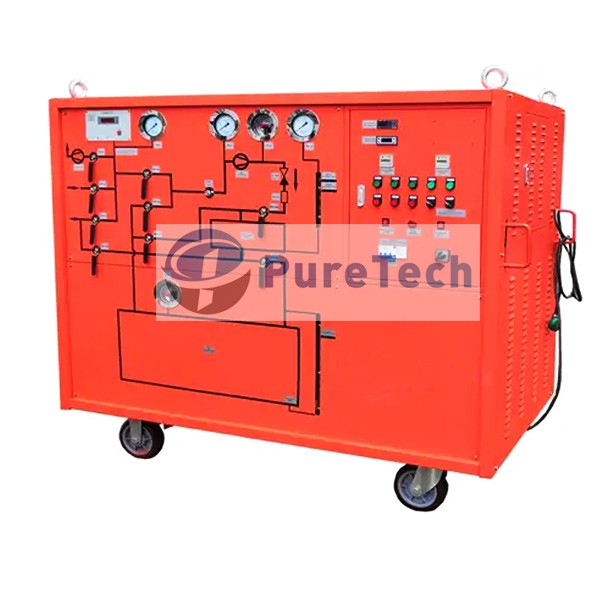

The PureTech SF6 Gas Recycling and Filling Machine (Model GRF) is also called as SF6 Gas Recovery and Refilling Machine and SF6 Gas Purification Machine, it is designed for circuit breakers, GIS, transformers, and other electrical equipment. After electrical equipment is evacuated, SF6 gas is filled inside, and recovered from the electrical appliances in use or test, purified and compressed and stored to storage tank at the same time.
Model GRF it is composed of vacuum system, compression system, purification system, storage system, condensing system and re-filling system.
• Adopt Germany technology with advanced design, rational construction and easy operation. Two stage rotary-vane vacuum pump with fast pump rate and also equipped with oil back-flow prevention device.
• Faster vacuum pumping speed, drying and filtration of SF6, removing hazardous moisture and contaminants
• Bipolar single-acting compressor with international advanced compression technique which can compress SF6 to liquid and storage it into tank directly.
• Refilling SF6 gas into electric equipment, realize the recovery of SF6 gas, save the resources and maintenance cost.
• Storage system can be customized with various capacity as per user’s request.
Specification | SF6 Gas Recycling and Filling Machine
|
Model |
||||||
|
Item |
GRF-16Y-4-(8)-(15) |
GRF-38Y-4-(8)-(15) |
GRF-38Y-15 |
GRF-38Y-30 |
GRF-38Y-70 |
Unit |
|
Ultimate Vacuum |
≤ 10 |
Pa |
||||
|
Vacuum Pumping Rate |
14.4 28.8 54 |
14.4 28.8 54 |
54 |
108 |
252 |
M3/Hour |
|
Gas Filling Rate |
5 (6) |
5 (6) |
≥ 6 |
≥ 6 |
≥ 8 |
M3/Hour |
|
Recycling Pressure (Start) |
≤ 0.8 |
MPa |
||||
|
Recycling Pressure (End) |
1 ~ 5 (as per product technical requirements) |
KPa |
||||
|
Gas Recovery Rate |
16 |
22 |
40 ( or 54) |
M3/Hour |
||
|
Annual Leakge Rate |
＜ 1% |
|||||
|
Maximum Pressure |
2.6 ~ 4.0 (as per product technical requirements) |
MPa |
||||
|
Container Tank Volume |
0.05 m3, 0.1 m3, 0.2 m3, 0.4 m3, 0.6 m3, 1 m3 （Choose or Customize according to your needs) |
M3 |
||||
|
Method of Recycling and Purification |
Vacuum heating and activition, regeneration treatment |
|||||
* These SF6 Gas Recycling and Filling Machines are equipped with vacuum heating and regeneration filters, if you have any special requirements, we can customize it to meet your needs.
* The machine size and weight will change slightly due to different configurations.
• 12 months of quality guarantee for non-human damage.
• Lifelong maintenance and spare parts supply.
• Free training on operation, maintenance and troubleshooting at PureTech factory.
• Puretech engineers go to customer site for commissioning and training (payable service).
• Design accept user's customization.
