Model OFC Portable Off-Line Hydraulic Oil Filter Cart, is also called oil transfer pump cart, refueling trolley, oil filling machine or single-tank oil filter cart, which can provide kidney loop filtration and fluid transfer, especially for Hydraulic Oil Filtration and other lube oil filtration. This oil filter cart can be used as an oil injection or regular filtration machine for hydraulic system, static pressure system, lubrication system and various oil equipment , for maintaining oil cleanliness and saving oil cost. Portable Oil Filter Pump Cart can remove 99.8% solid particles from lube oil, also used to transfer oil and other fluids from one container to another.

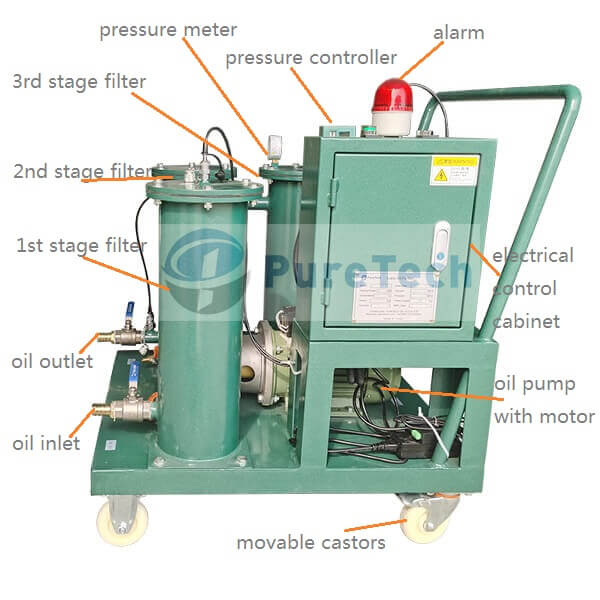

With a simple structure, this portable oil filter pump cart is composed of oil pump, oil filter cartridges, electrical control box, portable frame with casters, valves and gauges, etc.
The inner filter element of the fine filter cartridge can be chosen from 1um, 3um, 5um, 10um, 20 um, 30 um, 40 um, 50 um according to the needs of users and different occasions. You only need to change the filter element of different filter precision to achieve different precision filtering effects.
Optional item: Online Particle Counter | Online Flow Meter
• High precision filtering (filter stages upon request): stainless steel and fiberglass material for different filtering precision.
• Easy operation and replacement of filters.
• Defferent filters of different filtering precision can be chosen for different applications.
• Low noise and stable performance.
• Portable type, easy to move.
|
Machine Parameter |
Item | Unit | OFC-10 | OFC-30 | OFC-50 | OFC-70 | OFC-100 | OFC-150 | OFC-200 | |
| Flow rate | liters/hour | 600 | 1800 | 3000 | 4000 | 6000 | 9000 | 12000 | ||
| Working pressure | Mpa |
≤ 0.4 |
||||||||
|
Power supply |
|
380Volts, 50Hz, 3Phase (Or customized) |
||||||||
| Lift head | m | ≥ 20 | ||||||||
|
Mean Time Between Failure |
hour | ≥ 5000 | ||||||||
|
Filtering accuracy |
micron |
1um, 3um, 5um, 10um, 20 um, 30 um, 40 um, 50 um (Customized) |
||||||||
| Total power | kw | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | ||
| Inlet/outlet diameter | mm | 20 | 25 | 32 | 38 | 44 | 48 | 58 | ||
| Size | Length | mm | 500 | 500 | 600 | 800 | 810 | 950 | 1000 | |
| Width | mm | 450 | 450 | 600 | 800 | 800 | 810 | 850 | ||
| Height | mm | 830 | 850 | 870 | 900 | 1000 | 1100 | 1150 | ||
| Weight | kg | 80 | 100 | 130 | 160 | 180 | 220 | 250 | ||
* Please inquire us for other flow rates or types.
* The machine size and weight will change slightly due to different configurations.
• 12 months of quality guarantee for non-human damage.
• Lifelong maintenance and spare parts supply.
• Free training on operation, maintenance and troubleshooting at PureTech factory.
• Puretech engineers go to customer site for commissioning and training (payable service).
• Design accept user's customization.
