Description of Turbine Oil Varnish-Removal Purification
It is generally recognized that water (free, dissolved and emulsified water) is an enemy of turbine lubricating oils. In order to remove water and impurities from turbine oil, centrifuge separators is commonly used in power stations nowadays.
But centrifuge separator can only remove free
water from turbine oil, it cannot remove emulsified water, and because of the
high-speed centrifugal force, the oil will be further emulsified. What’s more,
the emulsified water acts as a catalyst to further increase oxidation, causing
oil to foam and shortening service life of core components.
One of the main problems with persistent water in turbine oil is the formation of varnish, which is an insoluble thin film deposit that is commonly found on bearings and servo valves. Centrifuge separators cannot remove varnish from turbine oil either.

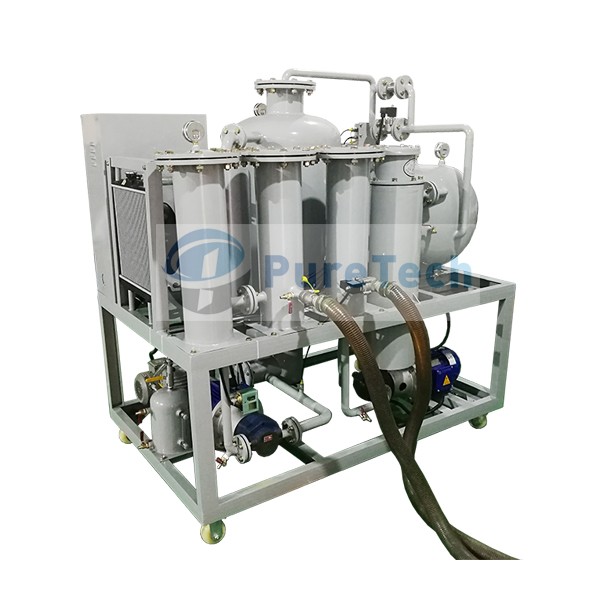

The thermal-vacuum type turbine oil varnish-removal purification
machine (model TOP) by PureTech is designed to remove contaminants, and continuous circulation of the turbine
oil ensures that even the smallest contaminants, varnishes and sludge, will be
removed, providing ultra-clean oil for power generating process.
• Water
content shall be decreased to less than 50 ppm.
• Total gas
content shall be reduced down to less than 0.1%.
• Three stages of filters to ensure the filtering
precision of 1 micron.
• Demulsifying
value by thermal vacuum turbine oil purifier is less than 15 min.
• Cleanliness of turbine oil after purification will reach or better than NAS 6 grade.
• Remove varnish and sludges which cannot be removed by centrifuge separators.
• Oil flow range from 600 liters/hour up to 18000 liters/hour for selection according to the actual demands.
• Demulsifying chamber is designed especially for emulsion breaking, it makes up for the technical defect that the centrifuge cannot remove emulsified water.
• Electrical heater is equipped with thermostat, avoid overheating of turbine oil.
• Design of thermal vacuum (vacuum & heating) to promote the efficiency of turbine oil dehydration.
• Integrated three-stage filtering system ensures the high filtering precision.
• Mobile Type, Continuous working and available for online processing of turbine oil after connecting with the lubricating oil tank of steam turbine.
• Power supply can be customized according to your local power.
Technical Parameters of Turbine Oil Varnish-Removal Purification
|
Machine Parameter |
Item | Unit | TOP-10 | TOP-20 | TOP-30 | TOP-50 | TOP-100 | TOP-150 | TOP-200 | |
| Flow rate | liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | ||
| Vacuum degree | Mpa | (-0.08) ~ (-0.099) | ||||||||
| Working pressure | Mpa | ≤ 0.3 | ||||||||
| Temperature range | ℃ | 40 ~ 80 | ||||||||
| Power supply | 380Volts, 50Hz, 3Phase (Or customized) | |||||||||
| Heating power | kw | 9 | 15 | 24 | 30 | 60 | 90 | 96 | ||
| Total power | kw | 10.5 | 17 | 26 | 33 | 66 | 98 | 106 | ||
| Inlet/outlet diameter | mm | 19 | 25 | 32 | 32 | 48 | 50 | 58 | ||
| Size | Length | mm | 930 | 1200 | 1400 | 1500 | 1650 | 1750 | 1900 | |
| Width | mm | 610 | 710 | 850 | 950 | 1200 | 1200 | 1250 | ||
| Height | mm | 1280 | 1290 | 1300 | 1400 | 1800 | 1820 | 1950 | ||
| Weight | kg | 210 | 250 | 280 | 350 | 650 | 1150 | 1300 | ||
| Oil index after purification | Cleanliness | NAS | ≤ 6 | |||||||
| Water content | ppm | ≤50 | ||||||||
| Filtering accuracy | micron | 1 | ||||||||
| Demulsification value (emulsion breaking) | min | ≤ 15 | ||||||||
* Please inquire us for other flow rates or types.
* The machine size and weight will change slightly due to different configurations.
* Customizing equipment is available on request.
